Winters PSQ20797 PSQ Pressure Gauge — 30" Hg VAC/BAR, 2.5 in, Bottom

List Price:

$885.81

/each

Product Description

Winters PSQ20797 PSQ pressure gauge.

Request a Quote — PSQ20797

Stock, shipping and delivery are confirmed with your quotation. Include model and quantity.

Series	PSQ
Pressure range	30" Hg VAC/BAR
Dial size	2.5 in
Connection size	2 in Tri-Clamp
Connection position	Bottom
Wetted parts	316L stainless steel
Warranty	5 years
Case	304 stainless steel, polished
Lens	Polycarbonate
Bezel	304 stainless steel, polished
Socket	316 stainless steel
Bourdon tube	316 stainless steel
System fill	Food-grade glycerin
Case fill	Food-grade glycerin
Surface finish (wetted)	Ra 8 microinches
Process temperature	0 to 250 °F (-18 to 121 °C)
Ambient temperature	40 to 150 °F (4 to 65 °C)
CIP temperature limit	250 °F (121 °C), continuous
SIP limit (dry)	266 °F (130 °C), 1 hour
Accuracy	+/-1.5% of full scale
Enclosure rating	IP65/NEMA 4X
Manufacturer agency designation	3A standard 74-07

Winters manufacturer specifications and documentation

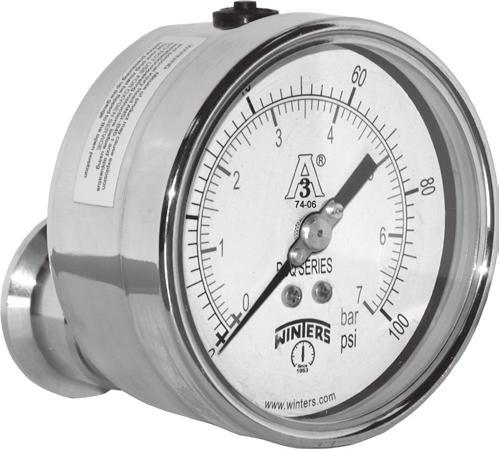

Manufacturer series image is representative. Ordered dial size, pressure range, wetted materials and connection are defined by the specifications above.
