Winters PFQ106 PFQ Pressure Gauge — 30" Hg VAC/KPA, 2.5 in, Bottom

List Price:

$119.09

/each

Product Description

Winters PFQ106 PFQ pressure gauge.

Request a Quote — PFQ106

Stock, shipping and delivery are confirmed with your quotation. Include model and quantity.

Series	PFQ
Pressure range	30" Hg VAC/KPA
Dial size	2.5 in
Connection size	1/4 in NPT
Connection position	Bottom
Wetted parts	Stainless steel
Case	AISI 304 stainless steel
Lens	Polycarbonate
Ring	AISI 304 stainless steel, crimp-on
Socket	AISI 316 stainless steel
Movement	Stainless steel
Pointer	Aluminum, anodized black
Accuracy	+/-1.5% of full scale
Enclosure rating	IP65
Working pressure	Maximum 75% of full scale
Warranty	5 years
Bourdon tube	Stainless steel
Fill liquid	Glycerin
Ambient/process temperature (filled)	-4 to 150 F (-20 to 65 C)
Welding	TIG

Winters manufacturer specifications and documentation

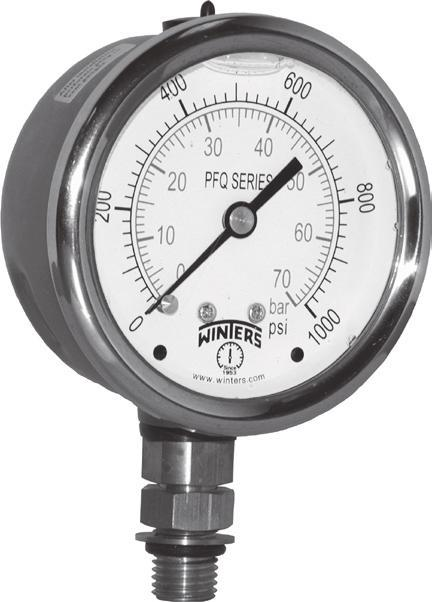

Manufacturer series image is representative. Ordered dial size, pressure range, wetted materials and connection are defined by the specifications above.
