Winters P1S574 P1S Pressure Gauge — 30"/0/300 PSI/KPA, 3.5 in dial, Centre back

List Price:

$196.83

/each

Product Description

Winters P1S574 — P1S 100 Series commercial pressure gauge.

Request a Quote — P1S574

Stock, shipping and delivery are confirmed with your quotation. Include SKU P1S574 and quantity in your inquiry.

Series	P1S 100 Series
Pressure range	30"/0/300 PSI/KPA
Dial size	3.5 in
Connection size	1/4 in NPT
Connection position	Centre back
Case material	Steel painted black
Lens	Glass
Socket material	Brass
Bourdon tube	Phosphor bronze
Accuracy	+/-1% ANSI/ASME Grade 1A
Enclosure rating	IP52
Ambient/process temperature	-40 to 200 F (-40 to 93 C)
Working pressure	Maximum 75% of full scale
Overpressure limit	25% of full scale
Warranty	5 years
Pointer	Black aluminum
Welding	Silver alloy
Ring material	Polished brass

Winters manufacturer specifications and documentation

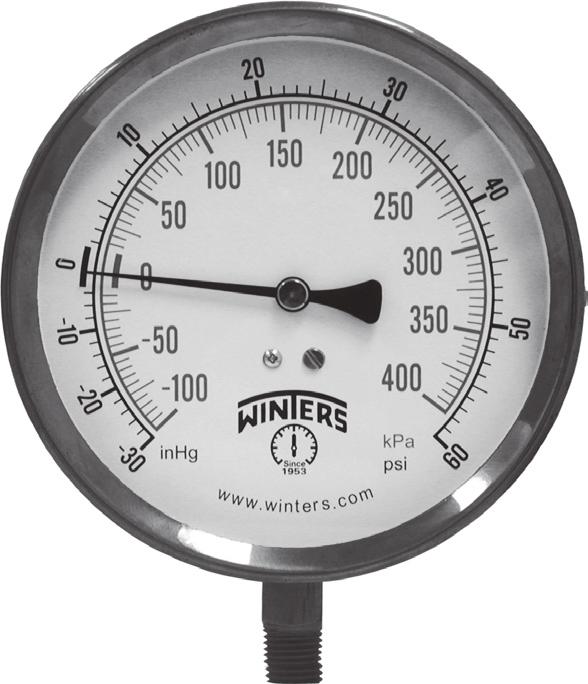

Series image is representative; dial range and mounting follow the specifications above. Refer to the manufacturer documentation for application and installation guidance.
