Winters DPG221 DPG Pressure Gauge — 0/2,000 PSI, 2.5 in, Bottom (lower mount)

List Price:

$483.23

/each

Product Description

Winters DPG221 DPG pressure gauge.

Request a Quote — DPG221

Stock, shipping and delivery are confirmed with your quotation. Include model and quantity.

Series	DPG
Pressure range	0/2,000 PSI
Dial size	2.5 in
Connection size	1/4 in NPT
Connection position	Bottom (lower mount)
Wetted parts	304 stainless socket; 316L sensor
Warranty	5 years
Case	ABS with silicone rubber boot
Case size	2.5 in (63mm)
Display	48 x 16 mm LCD
Socket	304 stainless steel
Sensor	316L welded piezo sensor
Accuracy	+/-1% (standard)
Enclosure rating	IP60
Power	2 AAA batteries (1.5 V)
Batteries included	No; 2 AAA batteries sold separately
Operating temperature	14 to 122 °F (-10 to 50 °C)
Storage temperature	-4 to 167 °F (-20 to 75 °C)
Response rate	Up to 3 Hz display refresh
Controls	Two-button operation; re-zero, backlight and peak indication

Winters manufacturer specifications and documentation

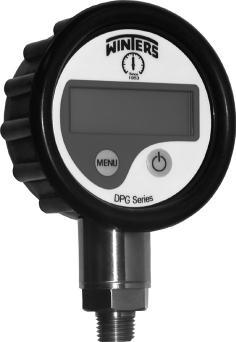

Manufacturer series image is representative. Ordered dial size, pressure range, wetted materials and connection are defined by the specifications above.
