Winters DPG204 DPG Pressure Gauge — -15/0/30 PSI, 2.5 in, Bottom (lower mount)

List Price:

$483.23

/each

Product Description

Winters DPG204 DPG pressure gauge.

Request a Quote — DPG204

Stock, shipping and delivery are confirmed with your quotation. Include model and quantity.

Series	DPG
Pressure range	-15/0/30 PSI
Dial size	2.5 in
Connection size	1/4 in NPT
Connection position	Bottom (lower mount)
Wetted parts	304 stainless socket; 316L sensor
Warranty	5 years
Case	ABS with silicone rubber boot
Case size	2.5 in (63mm)
Display	48 x 16 mm LCD
Socket	304 stainless steel
Sensor	316L welded piezo sensor
Accuracy	+/-1% (standard)
Enclosure rating	IP60
Power	2 AAA batteries (1.5 V)
Batteries included	No; 2 AAA batteries sold separately
Operating temperature	14 to 122 °F (-10 to 50 °C)
Storage temperature	-4 to 167 °F (-20 to 75 °C)
Response rate	Up to 3 Hz display refresh
Controls	Two-button operation; re-zero, backlight and peak indication

Winters manufacturer specifications and documentation

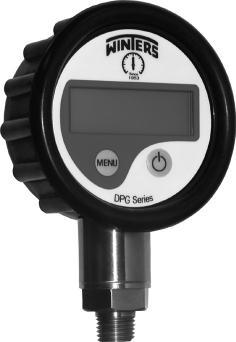

Manufacturer series image is representative. Ordered dial size, pressure range, wetted materials and connection are defined by the specifications above.

(0) Write a Review

Specifications

Winters DPG204 DPG pressure gauge.

Request a Quote — DPG204

Stock, shipping and delivery are confirmed with your quotation. Include model and quantity.

Series	DPG
Pressure range	-15/0/30 PSI
Dial size	2.5 in
Connection size	1/4 in NPT
Connection position	Bottom (lower mount)
Wetted parts	304 stainless socket; 316L sensor
Warranty	5 years
Case	ABS with silicone rubber boot
Case size	2.5 in (63mm)
Display	48 x 16 mm LCD
Socket	304 stainless steel
Sensor	316L welded piezo sensor
Accuracy	+/-1% (standard)
Enclosure rating	IP60
Power	2 AAA batteries (1.5 V)
Batteries included	No; 2 AAA batteries sold separately
Operating temperature	14 to 122 °F (-10 to 50 °C)
Storage temperature	-4 to 167 °F (-20 to 75 °C)
Response rate	Up to 3 Hz display refresh
Controls	Two-button operation; re-zero, backlight and peak indication

Winters manufacturer specifications and documentation

Manufacturer series image is representative. Ordered dial size, pressure range, wetted materials and connection are defined by the specifications above.
