FX4S-1P2-Automationstore.com

Part Number #

FX4S-1P2

List Price:

$132.00

/each

Product Description

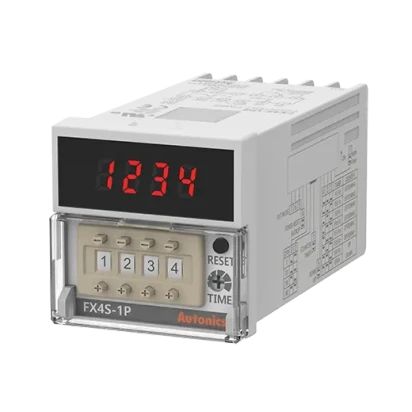

Autonics Counters, model FX4S-1P2, from the FXS Series product line.

Display method: 4-digit 7-segment LED
Operation method: Counter: Count up, Count down, Count up/down</br>Timer: Count up, Count down
Terminal: Terminal block
Output Operation: POWER ON DELAY, FLICKER
Power supply: 24VAC~ 50/60Hz, 24-48VDC @(=)
Time operation: POWER ON START
External Power Supply: Max. 12VDC @(=) ±10% 50mA
Signal Input Method: Voltage input(PNP), No-voltage input(NPN)
Max. Counting Speed: 1, 30, 2k, 5k [cps]
Min. signal Width: 20ms
Memory Protection: Approx. 10 years
Setting range: 0.01 sec to 99.99 sec, 0.1 sec to 999.9 sec, 1 sec to 9999 sec, 1 sec to 99 min 59 sec, 0.1 min to 999.9 min, 1 min to 99 hour 59 min, 0.1 hour to 999.9 hour, 1 hour to 9999 hour
Control output_Type: 1-stage preset
Control output_Relay: SPDT (1c): 1
Control output_NPN open collector: 1
Protection structure: IP20(front panel)
Environment_Ambient temperature: -10 to 55℃, storage: -25 to 65℃
Environment_Ambient humidity: 35 to 85% RH, storage: 35 to 85% RH
Weight: Approx. 171g (approx. 110g)

(0) Write a Review

Brand:

Autonics Counters, model FX4S-1P2, from the FXS Series product line.

Display method: 4-digit 7-segment LED
Operation method: Counter: Count up, Count down, Count up/down</br>Timer: Count up, Count down
Terminal: Terminal block
Output Operation: POWER ON DELAY, FLICKER
Power supply: 24VAC~ 50/60Hz, 24-48VDC @(=)
Time operation: POWER ON START
External Power Supply: Max. 12VDC @(=) ±10% 50mA
Signal Input Method: Voltage input(PNP), No-voltage input(NPN)
Max. Counting Speed: 1, 30, 2k, 5k [cps]
Min. signal Width: 20ms
Memory Protection: Approx. 10 years
Setting range: 0.01 sec to 99.99 sec, 0.1 sec to 999.9 sec, 1 sec to 9999 sec, 1 sec to 99 min 59 sec, 0.1 min to 999.9 min, 1 min to 99 hour 59 min, 0.1 hour to 999.9 hour, 1 hour to 9999 hour
Control output_Type: 1-stage preset
Control output_Relay: SPDT (1c): 1
Control output_NPN open collector: 1
Protection structure: IP20(front panel)
Environment_Ambient temperature: -10 to 55℃, storage: -25 to 65℃
Environment_Ambient humidity: 35 to 85% RH, storage: 35 to 85% RH
Weight: Approx. 171g (approx. 110g)

FX4S-1P2
