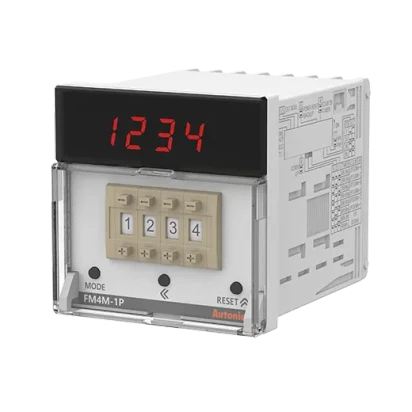

Autonics FM Series FM4M-1P4

Part Number #

FM4M-1P4

FM4M-1P4

List Price:

$221.00

/each

Product Description

Autonics Counters, model FM4M-1P4, from the FM Series product line.

Specifications

Display method: 4-digit 7-segment LED
Operation method: Count up, Count down, Count up/down
Terminal: Terminal block
Power supply: 100-240VAC~ 50/60Hz
External Power Supply: Max. 12VDC @(=) ±10% 50mA
Signal Input Method: Voltage input(PNP), No-voltage input(NPN)
Max. Counting Speed: 1, 30, 300, 2k, 5k [cps]
Min. signal Width: 20ms
Control output_Type: 1-stage preset
Control output_Relay: SPDT (1c): 1
Control output_NPN open collector: 1
Protection structure: IP20(front panel)
Environment_Ambient temperature: -10 to 55℃, storage: -25 to 65℃
Environment_Ambient humidity: 35 to 85% RH, storage: 35 to 85% RH
Weight: Approx. 245g (approx. 180g)
