Winters DPG3P04N2 DPG Plus pressure gauge.
Stock, shipping and delivery are confirmed with your quotation. Include model and quantity.
| Series | DPG Plus |
|---|---|
| Pressure range | -15/0/60 PSI |
| Dial size | 3.3 in case (85 mm) |
| Connection size | 1/2 in NPT |
| Connection position | Bottom (lower mount) |
| Wetted parts | 304 stainless steel |
| Warranty | 5 years |
| Case | Cast zinc with protective silicone rubber boot |
| Display | Backlit 51 x 36 mm LCD, 6 digits |
| Case rotation | 330 degrees |
| Accuracy | +/-0.1% of full scale (standard configuration) |
| Enclosure rating | IP65 |
| Communication | Bluetooth, mobile monitoring/datalogging/export |
| Power | 3 AAA batteries or USB power |
| Batteries included | No; 3 AAA batteries sold separately |
| Operating temperature | 23 to 104 °F (-5 to 40 °C) |
| Response rate | 1 to 10 readings per second |
| Manufacturer supplied accessories | Protective case and USB cable |
Winters manufacturer specifications and documentation

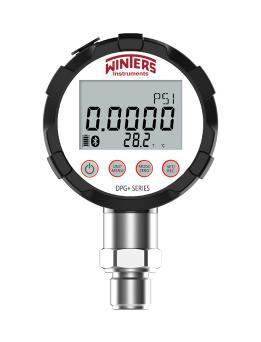

Manufacturer series image is representative. Ordered dial size, pressure range, wetted materials and connection are defined by the specifications above.
