Choose a fitting family — Inch Brass Compression Fittings
Series pictures are representative; verify the complete model, tube size, thread and material before ordering. Choose a fitting family to compare all its listed models.
Compare models — Inch Brass Compression Fittings
Select a model number or picture to open its product details. Pictures represent the fitting series; confirm final dimensions in the inch catalog.
| Picture | Model | Configuration | Tube outside diameter |
|---|---|---|---|
 | DCT-2-2-B | Male NPT connector | 1/8″ |
 | DLN-2-2-B | 90° male NPT elbow | 1/8″ |

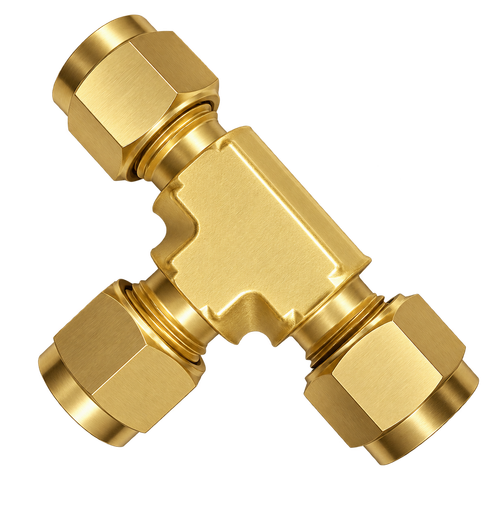

 | DTA-2-B | Union tee | 1/8″ |

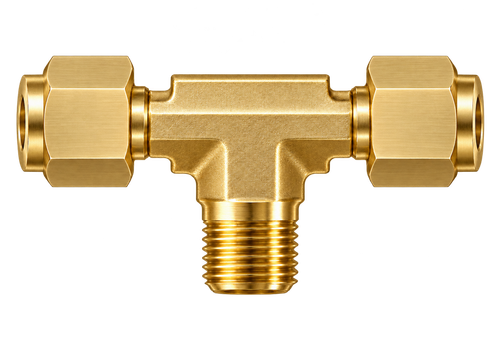

 | DTN-2-2-B | Male branch tee | 1/8″ |

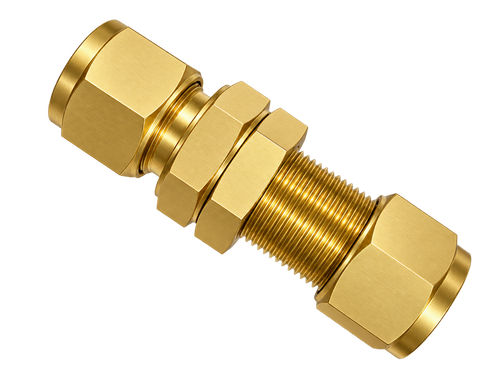

 | DSU-2-B | Bulkhead union | 1/8″ |
| DCT-2-4-B | Male NPT connector | 1/8″ |
| DLN-2-4-B | 90° male NPT elbow | 1/8″ |
| DCT-4-2-B | Male NPT connector | 1/4″ |
| DLN-4-2-B | 90° male NPT elbow | 1/4″ |
| DTN-4-2-B | Male branch tee | 1/4″ |
| DCT-4-4-B | Male NPT connector | 1/4″ |
| DLN-4-4-B | 90° male NPT elbow | 1/4″ |
| DTA-4-B | Union tee | 1/4″ |
| DTN-4-4-B | Male branch tee | 1/4″ |
| DSU-4-B | Bulkhead union | 1/4″ |
| DCT-4-61-1-B | Male NPT connector | 1/4″ |
| DLN-4-6-B | 90° male NPT elbow | 1/4″ |
| DCT-4-8-B | Male NPT connector | 1/4″ |
| DLN-4-8-B | 90° male NPT elbow | 1/4″ |
| DCT-4-12-B | Male NPT connector | 1/4″ |
| DCT-6-2-B | Male NPT connector | 3/8″ |
| DLN-6-2-B | 90° male NPT elbow | 3/8″ |
| DCT-6-4-B | Male NPT connector | 3/8″ |
| DLN-6-4-B | 90° male NPT elbow | 3/8″ |
| DTN-6-4-B | Male branch tee | 3/8″ |
| DCT-6-6-B | Male NPT connector | 3/8″ |
| DLN-6-6-B | 90° male NPT elbow | 3/8″ |
| DTA-6-B | Union tee | 3/8″ |
| DTN-6-6-B | Male branch tee | 3/8″ |
| DSU-6-B | Bulkhead union | 3/8″ |
| DCT-6-8-B | Male NPT connector | 3/8″ |
| DLN-6-8-B | 90° male NPT elbow | 3/8″ |
| DCT-6-12-B | Male NPT connector | 3/8″ |
| DLN-6-12-B | 90° male NPT elbow | 3/8″ |
| DCT-8-4-B | Male NPT connector | 1/2″ |
| DLN-8-4-B | 90° male NPT elbow | 1/2″ |
| DTN-8-6-B | Male branch tee | 1/2″ |
| DCT-8-6-B | Male NPT connector | 1/2″ |
| DLN-8-6-B | 90° male NPT elbow | 1/2″ |
| DTN-8-8-B | Male branch tee | 1/2″ |
| DCT-8-8-B | Male NPT connector | 1/2″ |
| DLN-8-8-B | 90° male NPT elbow | 1/2″ |
| DTA-8-B | Union tee | 1/2″ |
| DSU-8-B | Bulkhead union | 1/2″ |
| DCT-8-12-B | Male NPT connector | 1/2″ |
| DLN-8-12-B | 90° male NPT elbow | 1/2″ |
| DCT-8-16-B | Male NPT connector | 1/2″ |
| DCT-12-8-B | Male NPT connector | 3/4″ |
| DLN-12-8-B | 90° male NPT elbow | 3/4″ |
| DCT-12-12-B | Male NPT connector | 3/4″ |
| DLN-12-12-B | 90° male NPT elbow | 3/4″ |
| DTA-12-B | Union tee | 3/4″ |
| DTN-12-12-B | Male branch tee | 3/4″ |
| DSU-12-B | Bulkhead union | 3/4″ |
| DCT-12-16-B | Male NPT connector | 3/4″ |
| DCT-16-8-B | Male NPT connector | 1″ |
| DCT-16-12-B | Male NPT connector | 1″ |
| DLN-16-12-B | 90° male NPT elbow | 1″ |
| DCT-16-16-B | Male NPT connector | 1″ |
| DTA-16-B | Union tee | 1″ |
All Inch Brass Fitting Families
Choose a product family or search the complete manufacturer model number.
Need selection help? Contact us with your model number and quantity.
Automation.Store is pleased to offer our Double ferrule Brass compression fittings in inch dimensional increments.
Standard is fractional tube size by NPT threaded male connections. Our fittings are interchangeable and inter-mixable
with many major manufacturers. Please review the following catalog for more details on these products:
